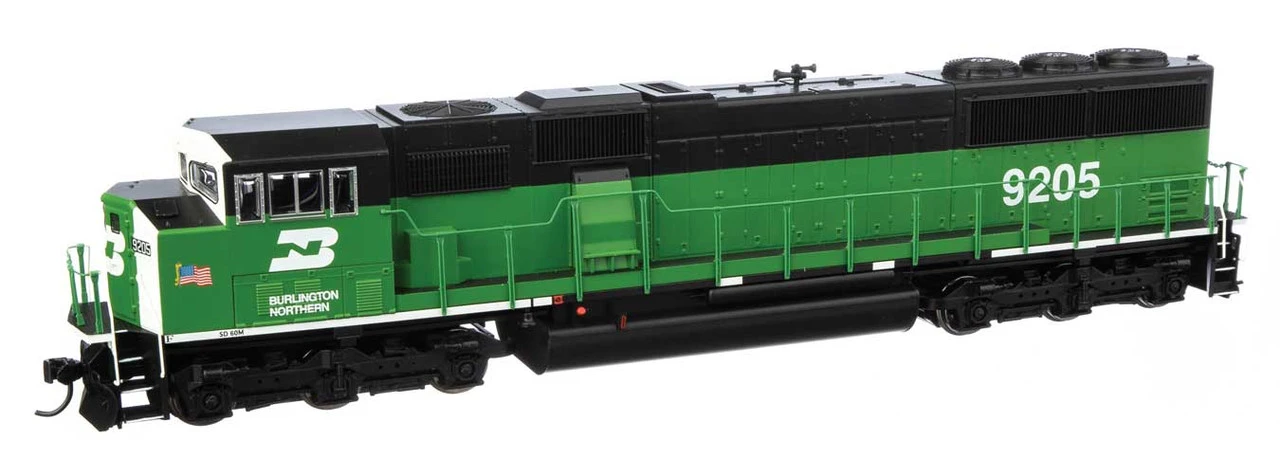

Walthers Mainline 910-20313 – EMD SD60M “TRICLOPS” W/ LokSound 5 Sound & DCC Burlington Northern (BN) 9205 – HO Scale

Make your WalthersMainline SD60M 2- or 3-Window models more realistic with these accessories, available separately:

SD60M Detail Kit

Revolutionize freight service with WalthersMainline SD60 diesels. Based on mid-production EMD units built with safety cabs fitted with a three-piece windshield and designated as SD60M for modified, these heavy-haulers are still going strong for many original owners and shortlines. Ready for service on your railroad, check out the many features including: Limited edition – one time run of these roadnumbers!

• Prototypes in service 1989 to the present in main line and regional service
• Mid-production safety cab with three-piece windshield
• Open grating on steps
• Available with ESU Sound & DCC for DCC & DC layouts featuring:
• 4 Function outputs with brightness control by CV
• Fully DCC Compatible
• 14, 28, 128 Speedsteps
• Dual Mode DC/DCC
• 4 Air Horns changeable by CVs
• 2 Bells Changeable by CVs
• Full 8 Notch Prime Mover Sounds
• Compressor
• Dynamic Brake
• Multiple realistic lighting effects
• 21-pin DCC plug
• Same powerful drive as WalthersProto(R) locos featuring:
• 5-pole skew-wound motor
• 14:1 gear ratio
• Helical-cut gears for quiet operation and easy multiple unit operation
• All-wheel drive and electrical pickup
• Dual machined brass flywheels
• Heavy die-cast metal chassis
• Constant & directional LED headlights
• Updated shell with molded drill starter points for grab irons in EMD SD60M Diesel Detail Kit (#910-257) sold separately
• RP-25 metal wheels
• Proto MAX(TM) metal knuckle couplers

PLEASE NOTE: When operating Walthers-branded DCC-equipped locomotives in DC mode, do not use power packs that exceed an 18V rating. This includes MRC 1300-series power packs which have known issues with our decoders.



Alternate Horns and Bells include: Horns:CV163 = Nathan K3LA (default) CV163 = Nathan P3 CV163 = Leslie RS3L CV163 = Nathan K5LA CV163 = Nathan P5

Bells: CV164 = Steel Air Bell (default) CV164 = Graham White E-Bell

Click here for additional information on DCC functions:

ESU CV List
ESU Function Mapping
ESU Function Output
